Introducing the 850 Series
Grin factor ten from the Coupe and Spider. They really show Fiat at its small car best - and most confident. While the diminutive and hugely popular saloon made a real advance on its Fiat 600 parentage.

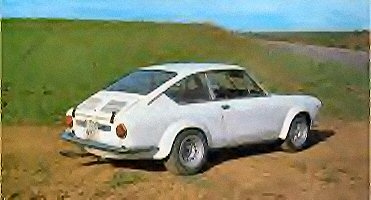

If the power isn’t enough for you, then Abarth breathed more poke into these machines until they could seriously embarrass much bigger competition. For instance, the Abarth ‘OT1000’ series Coupes achieving legendary status only years after their conception. If you can’t afford a real one kits are still available.

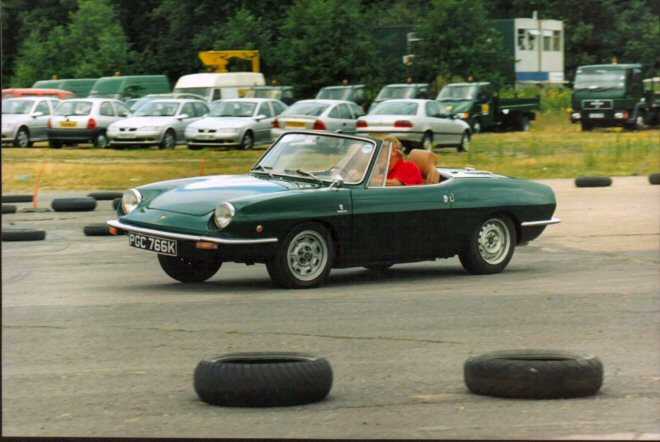

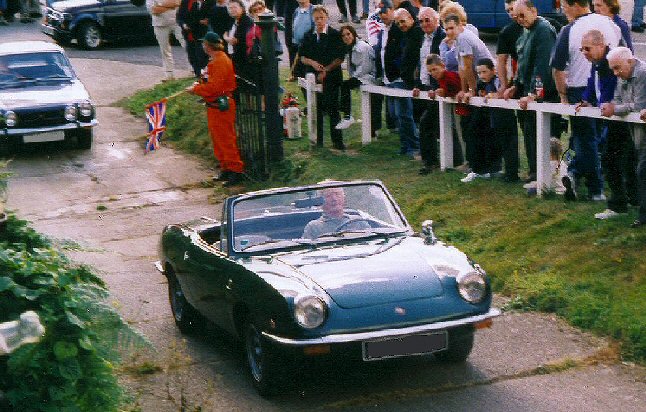

On visits to Donnington, Brooklands and Castle Combe in recent years we’ve also witnessed spirited drives from our 850 Spider and Coupe owning sisters and brothers. The 850s are most at home in the auto-test where their nimbleness is nearly unbeatable… The cars just bring out the driver of you!

850 History
In the past Fiat have shown a huge talent for making radically different cars out of the same basic floorpan and suspension design. In the 850 range they managed to take the 600 saloon and redesign it into a saloon, coupe and spider. Each has its own personality and very individual looks. This was in part due to the use of outside design houses, regularly challenged by Fiat to deliver adventurous concepts. In the 850 Spider, it was Bertone who delivered a the mini masterpiece & classic. It looked fantastic and was a great sales success with over 140,000 built. Many were exported to the States, but enough are still around to enjoy a get together!

The Coupe was designed by Fiat’s Centro Stile (under Boano) and there are distinct similarities with the bigger 124 AC Coupe. A careful review of the 850 Coupe will reveal striking similarities around the roof, pillars and glass lines with the later 124AC. A certain angularity, lightness of frame and large glass area, giving an airy feel for the occupants. . The 850 Coupe was eventually updated twice in its production life - giving three series of the model – and a total of 380,000 sold.

Both the Spider and Coupe production totals are dwarfed, however, by the number of 850 Saloons produced – over 2,203,000. This number compares with any of the best mass production totals in Fiat’s history.

The first Saloon was launched in 1964 with a water-cooled 843cc rear mounted 4 cylinder engine. The standard saloon had 40bhp and the Super had 42bhp (the two versions are identical in appearance). Key to the domestic popularity of the 850 was its size. It’s one of the few model series where the saloon is smaller and lighter than the spider and coupe versions! Because the 850’s an evolutionary development of the Fiat 600, keeping the weight down was a priority to the success of this car, as Fiat had achieved with the 600. The 850 saloon weighs about 670kg.

It also retains the basic Fiat 600 independent suspension design, with upper and lower wishbones and a transverse leaf spring on the front (non-driven) wheels and a triangulated swing arm and coil spring solution on the rear. Its body design is a two-door with an integral chassis. Again this is close to the 600 concept. The saloon wheelbase is 2,027mm or about 6ft 8ins. Fully laden Fiat quote 1070kg – which is a remarkable 60% addition to the unladen car weight for load carrying. The car is also delivering a respectable 70bhp per ton in power to weight terms. To complete the spec. the 850 Saloon also has drum brakes, a 4.625:1 final drive ratio and a quoted top speed of 78mph and 46mpg.

From 1966 automatics were introduced – in fact a semi automatic pedal-less manual gear change. This was called the 850 Idroconvert – a device that replaced the clutch, (all it needed was paddles on the steering wheel..?). We've never seen one going. Could someone tell us if it really works?
In ’65 the Coupe and Spider were announced at the Geneva Motor Show, inheriting the same power unit as the saloon, the 65mm bore 843cc. type 100 G unit. But in the Coupe it was rated at 52bhp and the Spider at 54bhp. This was achieved by attention to the carb, inlet and exhaust manifolds. In particular the four into two (-into one exhaust box) exhaust manifold. This effectively provides a separate pipe for each cylinder into the silencer box. No wonder they rev so freely!

Front disc brakes and a taller final drive ratio of 4.875:1 were included. For the first time since the 20’s the circular ‘Sport’ badge with the competition laurels was added too. The badge was used again in the 124 range and adopted for all ‘Sports’ models in the following decade.

The Coupe and Spider are also heavier than the Saloon, at 720kg, but with a slightly better power to weight ratio. Their top speed is quoted at 98mph thanks to a slippy shape and revised final drive.
In ’65 a station wagon was launched. Should be called a Multipla like the 600D it replaced – but in Italy it was the Familiare. It is misleading to call it a station wagon, as Fiat had been quick to adopt the genuine American station wagon estate with the 500 Topolino in the fifties. The Familiare is a 37mpg, 62mph, mini-bus or MPV with fixed seats (in three rows), not a station wagon, and obviously for the larger family. Did Renault really invent the people mover then? From 1970 to ‘76 the Familiare had a 903cc 33bhp engine fitted.

In March 68 new series of the Coupe and Spider were produced. Engine capacity was increased to 903cc although the power output was unchanged. With these models, 4 headlights were introduced on the Coupe, while the Spider’s headlights were now inset into the front wings with a standard lens. Trim was altered, alternators supplied, and the rear lights changed for both. The Spider also gained a hard top option. The Saloon received the 52bhp unit from the Coupe engine unit, front discs, and an improved trim level – being called the 850 Special.

A slightly modified version if the Coupe (series 3) appeared in 1971, when the twin headlights were raised to comply with export regulations. Actually the model was very short lived as the 127 coupe was announced in the same year. Italian production of the 850 Saloon ceased in 1971. Although a survivor of the 850 range was offered until 1985 as a camper van version of the Familiare.

.

Abarth’s ‘Tweeks’

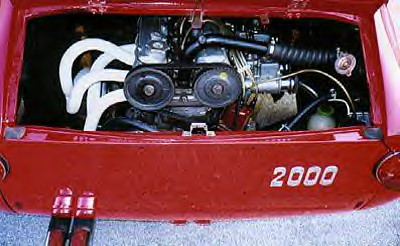

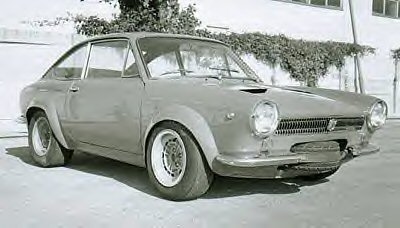

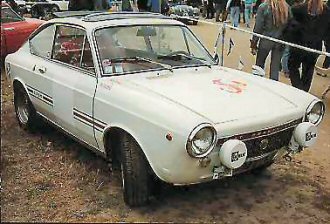

There were a few prototypes built by Pininfarina and Ellena, but these were as show demonstrators rather than for prototype work for production. Abarth found the coupe and spider versions a promising base for competition and race tuning. All received larger power units. With 982cc, 1342cc,1600cc and even 2 litre versions involved.

Buying Guide
Body

Yes its going to be a question of careful examination of the whole body. They were designed for use in the Mediterranean climate, before the need for any anti-corrosion measures had been considered. Light gauge steel to keep down the cars' weight, and little understanding of the corrosion points formed by over working the steel, use of minimal undercoats... all this means they can rust out fast from just about anywhere. Even if garaged, be wary of examples left alone for many years, as the condensation can be sufficient to rapidly rust through panels and box sections from anywhere.

Like the 600 before it, you must inspect the 850s everywhere.

Engine Notes
The 850 engine is canted to allow access to the plugs and allow room for the radiator. It was made to rotate in reverse to improve cooling
With the small radiator located beside the engine, the cooling system is marginal – meaning any blockages will result in overheating problems. Check the hoses and radiator regularly. A new core is recommended with copious supplies of antifreeze/ summer coolant.

Check the distributor cap, and HT prone to insulation cracking from heat effects.

Differentials seem to be a weak point prone to gear and case fatigue. They should be checked regualarly for cracks, and it is advisable to acquire spares of you intend high mileages.

King pins on the front suspension need to be greased regularly to avoid wear.  Also the mechanical fuel pump can dry out. make sure you keep spares.

Brakes ok but first series narrow calipers and discs are now rare. Suggest fitting series 2 instead.

The Bertone spider is less well put together than the Coupe or Saloon. MBG provide suspension, exhaust and wheel mods. (See parts and advice below for contacts).

Values
Currently the best saloon is not going to be worth more than £1700. The best Coupes will fetch £5000 plus.

Types of 850

Mini Van v MPV
As a break from ‘petrol-heading’ performance/ techy talk – I think the 850 Familiare is an MPV people mover, and with the 600D Multipla of 1960 it means Fiat beat Renault to the MPV concept by well over twenty years. Or is it just a mini-van? And (back to petrol-heading) how well could one tow a trailer?

850 Prototype Facts
The 850 originated in 1959 with the type 119 and type 122 projects.
The 119 prototype used a 1litre engine destroked from the 1100 block, while the 122 used a 600 engine bored out to 850cc.
The type 122 was eventually fitted with the larger engine and became the Simca 1000 after several body designs were tried – based around the 600. Prototypes and body styling versions included the: Vignale spider, Bertone racer spider , Allemano coupe, Lombardi Libellula spider, Moretti coupe, OSI coupe, Zagato coupe, and Pininfarina coupe.
